Jacketed Three-Way PLUG Valve
3-Way Plug Valve is used for flow diversion for Water, Wastewater, Sewage and Bio Gas applications.
3” – 16”/DN80 – DN400.
Description
3 Way Plug Valve
3-Way Plug Valve is used for flow diversion for Water, Wastewater, Sewage and Bio Gas applications.
3" – 16"/DN80 – DN400.
Available flanged to PN10, PN16 or Class 125.
Range of Elastomers available to suit application.
Manual, Gear or Motor operated.
Ductile Iron and Stainless Steel versions available.
Available Factory Set for specific Flow diversion
 |
|
 |

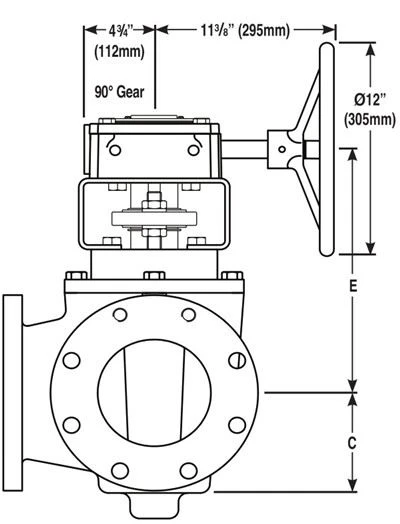

Flanged end Pn16 dimensions – inches (mm)
|
Valve Size |
A |
B |
C |
D |
E |
F |
|
3"/DN80 |
8 (203) |
51/2 (140) |
43/4 (121) |
91/8 (232) |
– |
71/2 (191) |
|
4"/DN100 |
97/8 (251) |
61/2 (165) |
6 (152) |
135/8 (346) |
13 (329) |
9 (229) |
|
6"/DN150 |
115/8 (295) |
8 (203) |
7 (179) |
151/8 (384) |
14 (357) |
11 (279) |
|
8"/DN200 |
137/8 (352) |
9 (229) |
11 (279) |
191/8 (486) |
173/4 (451) |
131/2 (343) |
|
10"/DN250 |
163/4 (425) |
11 (279) |
11 (279) |
191/8 (486) |
173/4 (451) |
16 (406) |
|
12"/DN300 |
19 (483) |
111/2 (294) |
127/8 (327) |
211/4 (540) |
191/2 (495) |
19 (483) |
|
14"/DN350 |
21 (533) |
121/2 (318) |
141/8 (360) |
211/8 (536) |
203/8 (518) |
21 (533) |
|
16"/DN400 |
233/4 (603) |
151/8 (384) |
143/4 (375) |
22 (559) |
21 (535) |
231/2 (597) |
3 Way Port Position(view from above)
View Position from Above
How to Order
When ordering Pratt 3-Way Valves, specify style letter of the port position required.
Note: DN80 gear operated valve details upon request. Flanges are to Class 125 drilled BS eN 1092-2 PN16. Drawings are for information purposes only; please request certified drawings before preparing piping drawings.
GZP valves can be manufactured in all kinds of materials to meet different requirements from clients, especially in NACE standard.
GZP valves can be equipped with gear operator, pneumatic actuators, Hydraulic actuators, Electric actuators, bypasses,locking devices,chainwheels,extended stems and many others are available to meet the customers' requirements.
|
Technical data |
|
|
Design |
API 6D, API599 |
|
Pressures range |
ANSI 150 ~ANSI 900 ,PN10~PN150 |
|
Size range |
DN50(2") ~DN350 (14") |
|
Body Material |
Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel.etc. |
|
NACE MR-01-75/NACE MR-01-03 Special Requirements |
|
|
Face to face |
API 6D, ASME B 16.10,EN 558,DIN3202 |
|
Fanged RF, FF, RTJ Ends |
ASME B16.5 |
|
BS 4504,DIN 2543-2545,EN1092 |
|
|
Butt-Weld BW Ends |
ASME B16.25 ,DIN 3239,BS 2080, EN 12627 |
|
Temperature range |
-29°~ 350°C |
|
Design feature |
|
|
Construction |
Lifted type,sleeve type,inverted type,jacketed type |
|
Port |
Full bore and Reduced bore |
|
Plug Type |
plug type |
|
Stem |
Blowout-proof stem |
|
Seat Sealing |
metal seat,soft seat,lubricated seal, |
|
Valve Operation |
Gear,pneumatic,Hydraulic,Electric actuators. |
|
By passes,locking devices,extended stem,etc |
|
|
Fire Safe |
API 607, BS 6755,API599 |
|
Other design |
Anti-static design,automatic pressure relief design, emergency grease injection design, drain valve, anti-corrosion design, anti-sulfur design,etc |
